Overview

INDUSTRY BENCHMARK FOR MARINE ENTERTAINMENT

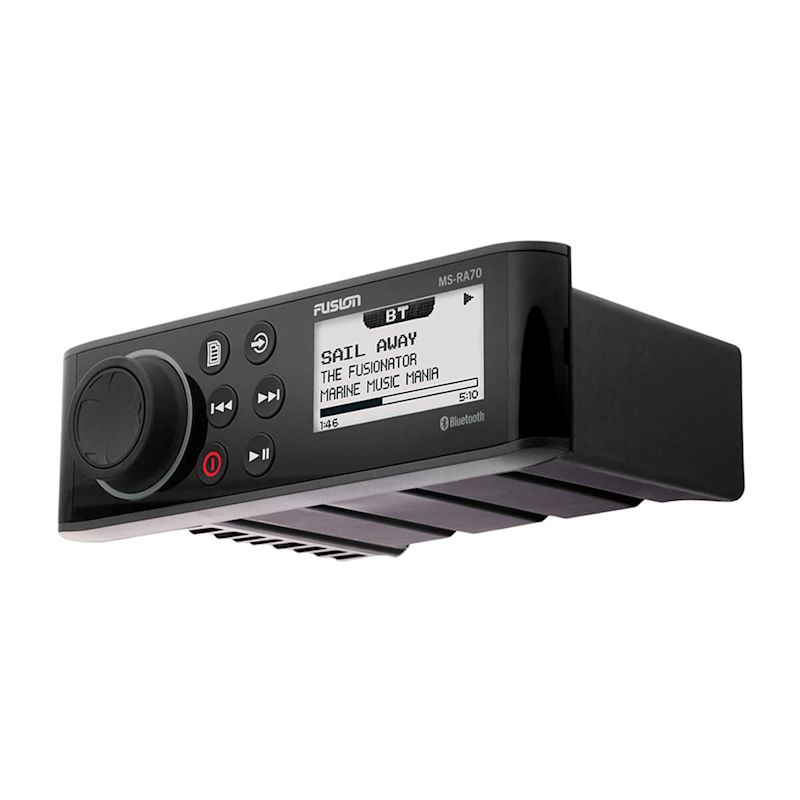

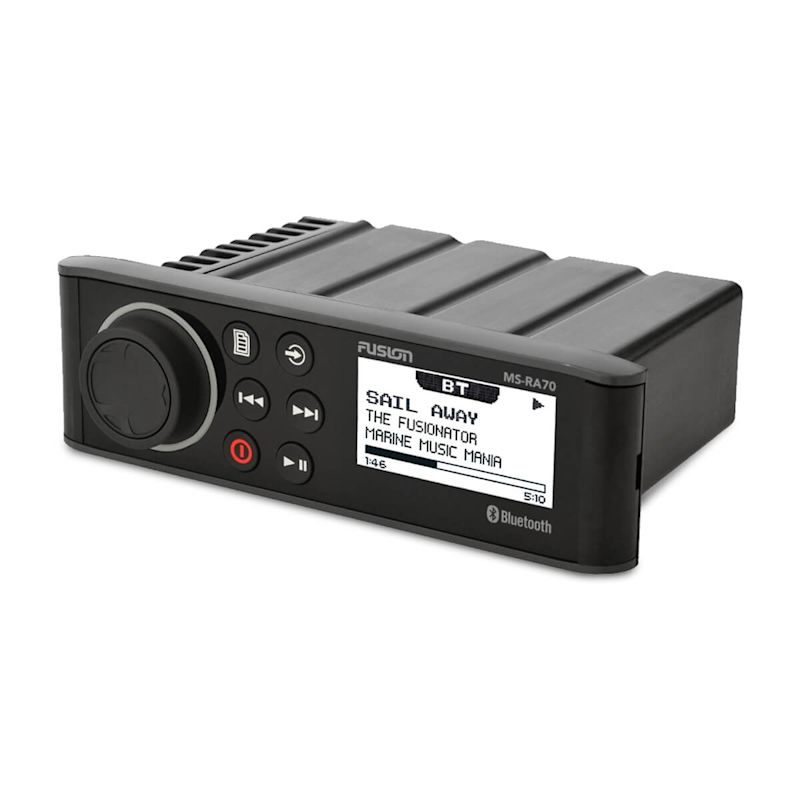

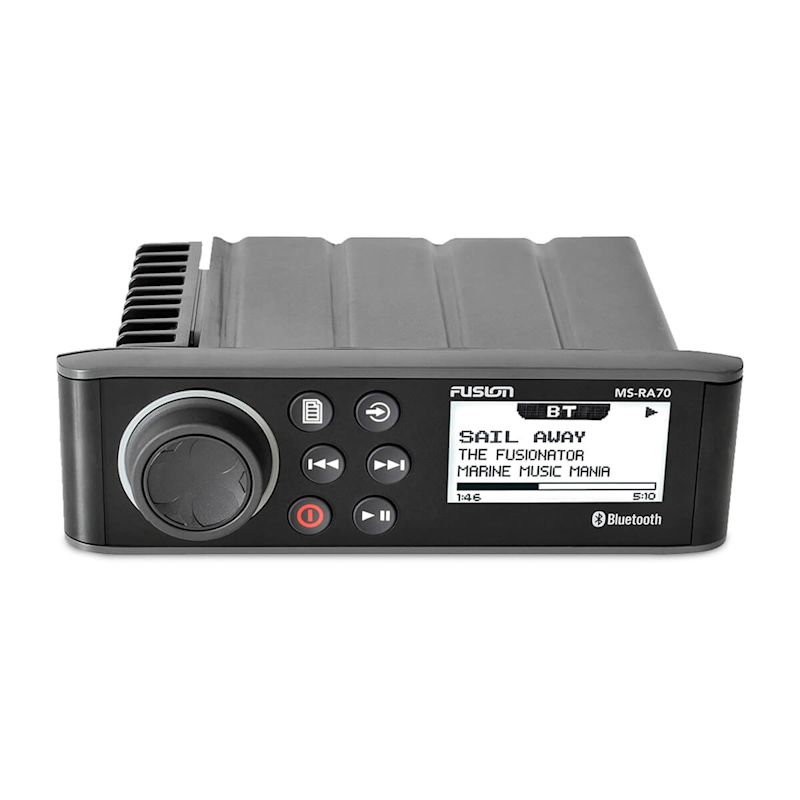

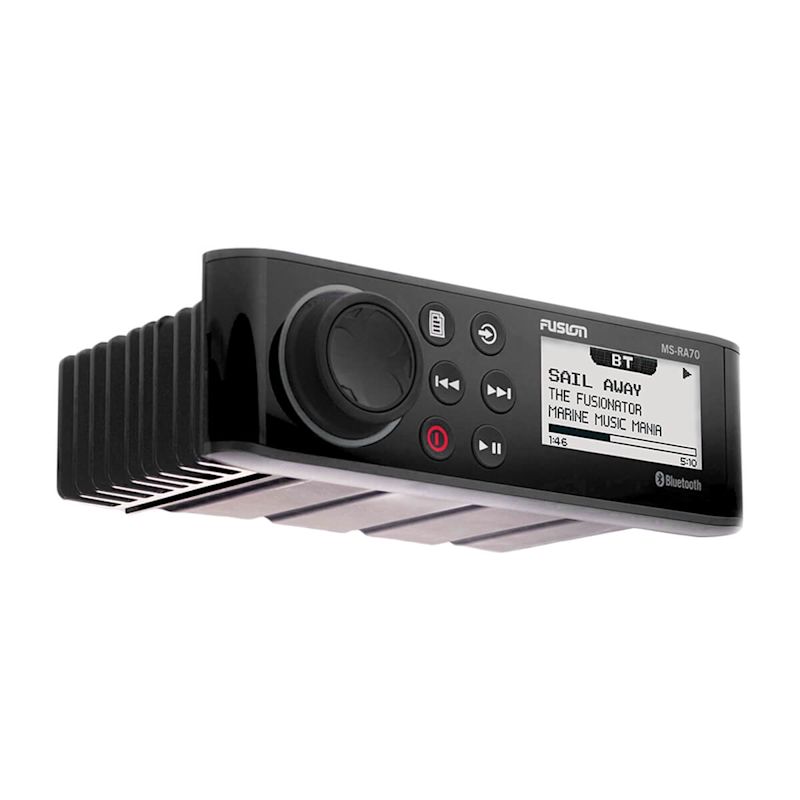

Seamlessly retrofit your existing DIN-sized stereo with a value-packed RA70 Series marine stereo from Fusion?. The RA70 Series includes three marine stereos — MS-RA70 and MS-RA70N.

Seamlessly retrofit your existing DIN-sized cutout without needing to reconfigure dash space.

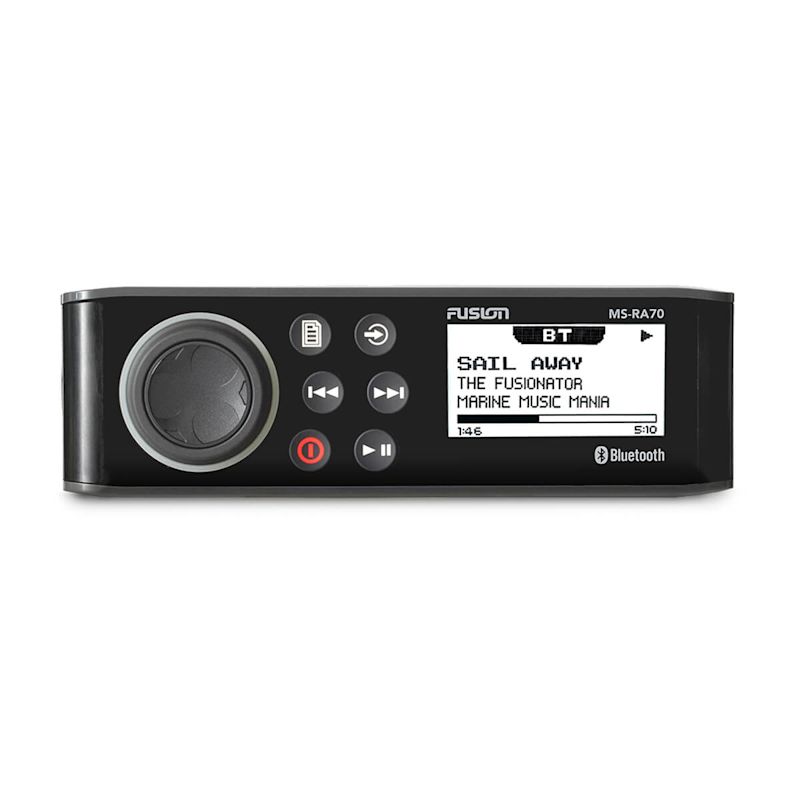

Optically bonded monochrome LCD improves screen visibility.

Built-in Class-AB amplifier delivers efficiency with reduced distortion.

Multi-Zone? Technology gives you control of two separate audio zones.

Control your music from a compatible multifunction display (MFD)1, smart device or Garmin watch.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

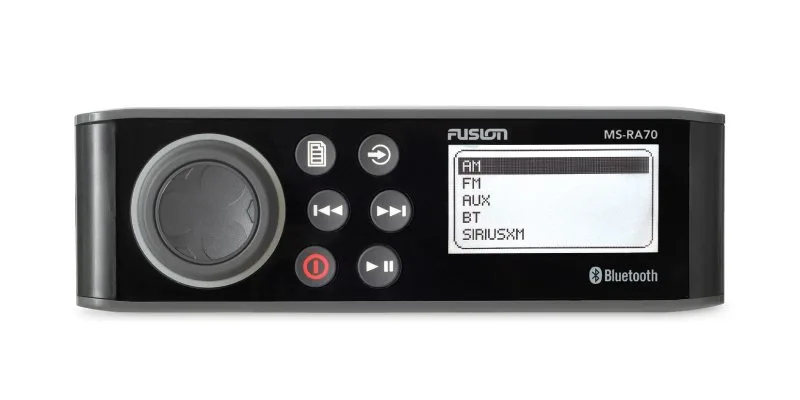

Take advantage of the many source options available, including BLUETOOTH?technology, DAB+ radio, AM/FM radio, AUX and USB connections.

Enjoy entertainment control with the Fusion Audio App

Learn More

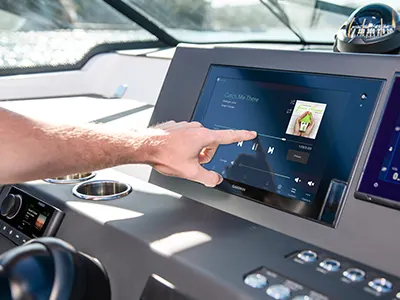

Control your audio directly from an MFD with Fusion Audio wired technology.

Control your audio right from your compatible Garmin watch with the Fusion Audio Lite app.

1Available on MS-RA70N via an NMEA 2000 connection
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Specs

General

Dimension 7.4"x 2.36"x 4.87"(188 x 60 x 123.5 mm) Weight

1.23 lbs (556 g)

Water rating IPX7 (front panel only, when properly installed) Display 2.6"optically bonded monochrome LCD Operating temperature 32° to 122° F (0° to 50° C) Current (max) 15 A

Networking

NMEA 2000? LEN see Additional BLUETOOTH? wireless range up to 30 ft ANT? wireless range Up to 10 ft Wireless frequencies/protocols BLUETOOTH?: 2.4 GHz @ +1.9 dBm nominal
ANT?: 2.4 GHz @ +1.9 dBm nominal

Audio

Amplifier Class-AB (4 ohm)

Electrical Features

Power Input 10.8 - 16 VDC Compass-safe distance 5.9"(150 mm)

Stereo Features

Peak power 200 W Rated power output (4 ohm) 26 watts RMS x 4 @ 14.4 V input < 10% THD Fusion-Link? control yes (see Additional) Multi-Zone? technology 2 zones BLUETOOTH? wireless technology ANT? wireless technology SiriusXM-ready see Additional DAB+ ready see Additional Supports NRX wired remote see Additional Multi-language interface Dutch, English, French, German, Italian, Spanish Software updates USB Warranty 1year

Sources

Supported sources

AM, FM, BLUETOOTH?, USB audio, iPhone?, iPod?, AUX x1, AOA


MS-RA70NSX: SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner)


MS-RA70 and MS-RA70N: DAB+ ready (available in Europe and Australia only)

Connections

Auxiliary inputs (RCA) 1 NMEA 2000? ports 1 (MS-RA70N and MS-RA70NSX only) USB 2.0 ports 1 SiriusXM ports 1 (MS-RA70NSX only) AM/FM ports (Motorola antenna connector) 1 Speaker connections 4 (2 zone amplified) RCA pre-out (left, right and subwoofer) 2 zones (requires external amplification) Line out 2 (L + R per zone, requires external amplification) Subwoofer out Zone 1 (mono output, requires external amplification)

Additional

Additional

NMEA 2000? LEN: 1 (50 mA), MS-RA70N and MS-RA70NSX only

Fusion-Link?control: MS-RA70: smart device and Garmin watch; MS-RA70 and MS-RA70NSX: MFD, smart device and Garmin watch

SiriusXM-Ready: MS-RA70NSX only

DAB+ Ready: MS-RA70 and MS-RA70N only

Supports NRX wired remote: MS-RA70N and MS-RA70NSX only
