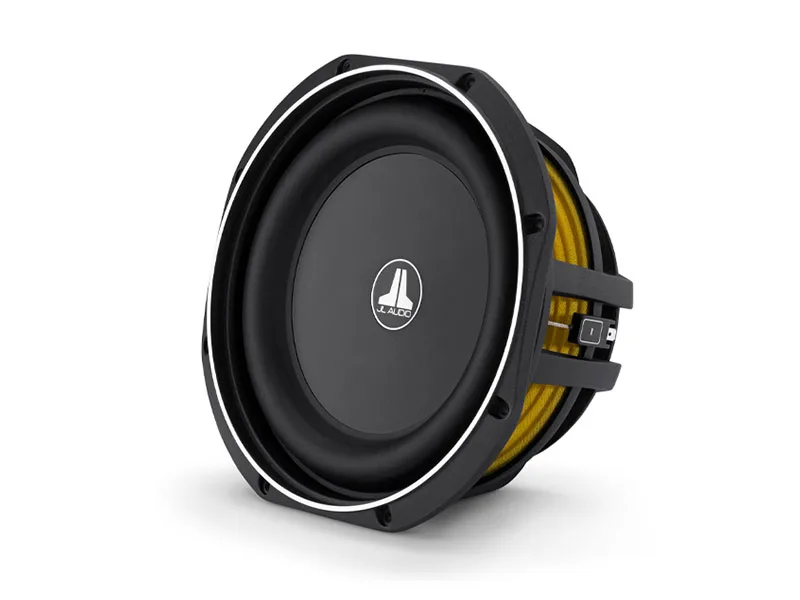

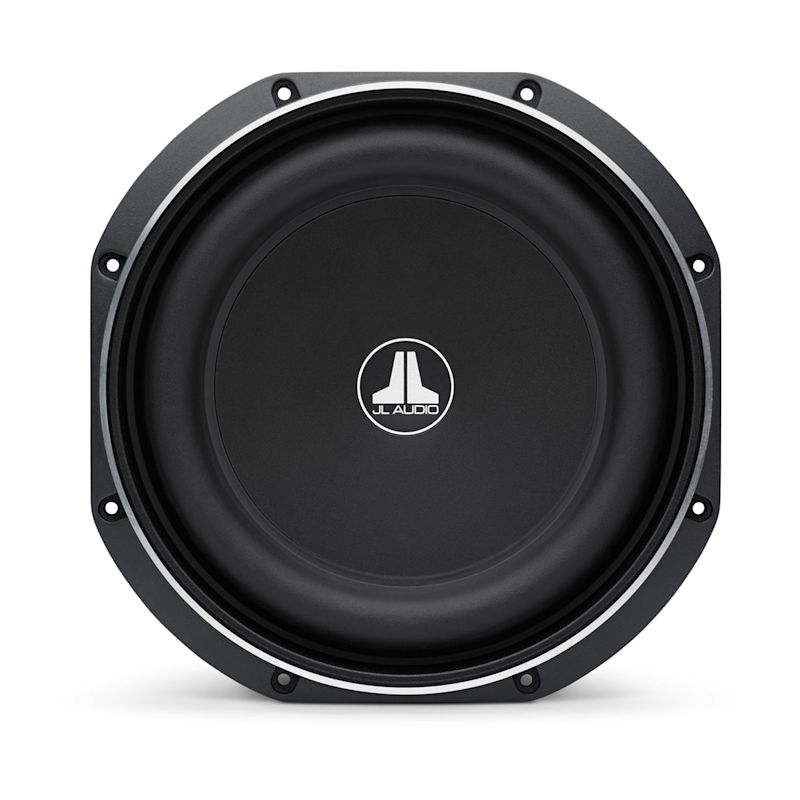

DESIGNED TO EXCEL IN PREVIOUSLY IMPOSSIBLE SPACES
Offering a powerful combination of shallow mounting depth, minimal frontal clearance and ultracompact enclosure requirements, the TW1 subwoofers are an outstanding choice for the tightest space applications. Their thin-line technology extracts the maximum in bass sound quality and output from a uniquely space-efficient architecture.
DELIVERS DEEP, POWERFUL BASS PERFORMANCE IN TIGHT-SPACE INSTALLATIONS
CHOOSE FROM 10- OR 12-INCH TW1 THIN-LINE SUBWOOFERS
EXTREMELY SMALL (0.35 CUBIC FEET) ENCLOSURE VOLUME REQUIREMENTS
THIN-LINE FRAME DESIGN MINIMIZES EACH SUBWOOFER’S NEED FOR FRONTAL CLEARANCE
PAIRS BEST WITH AMPLIFIER POWER IN THE 75- TO 300-WATT RANGE
1-YEAR WARRANTY
WHAT YOU'LL LOVE

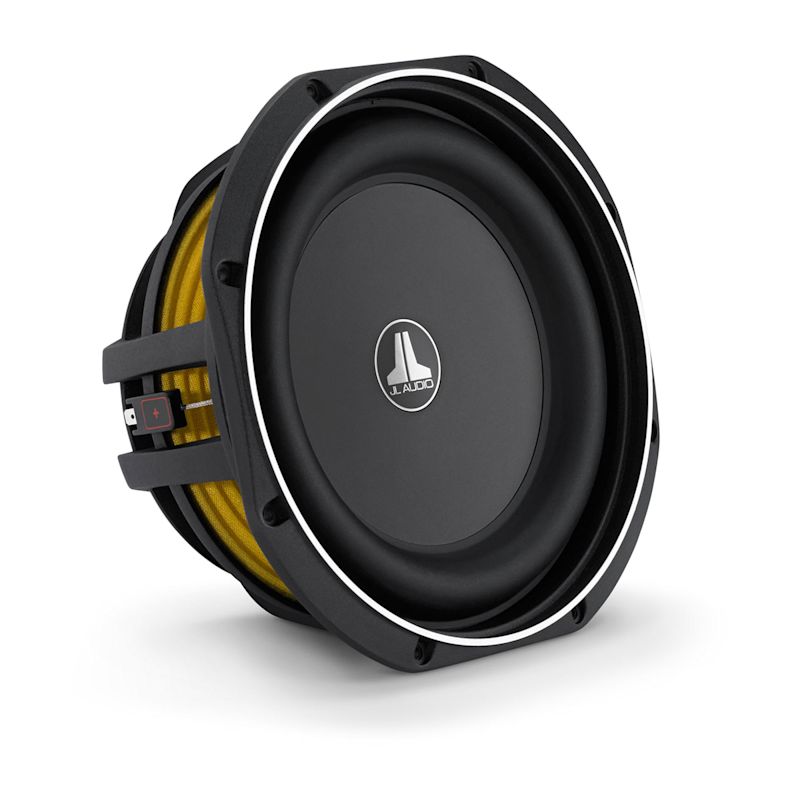

RECESSED SUSPENSION

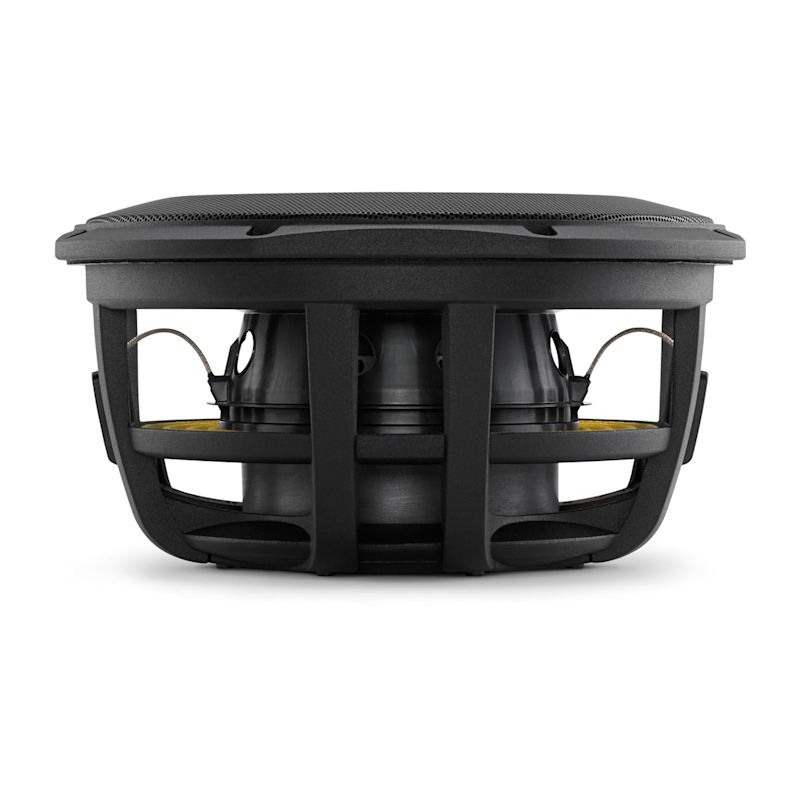

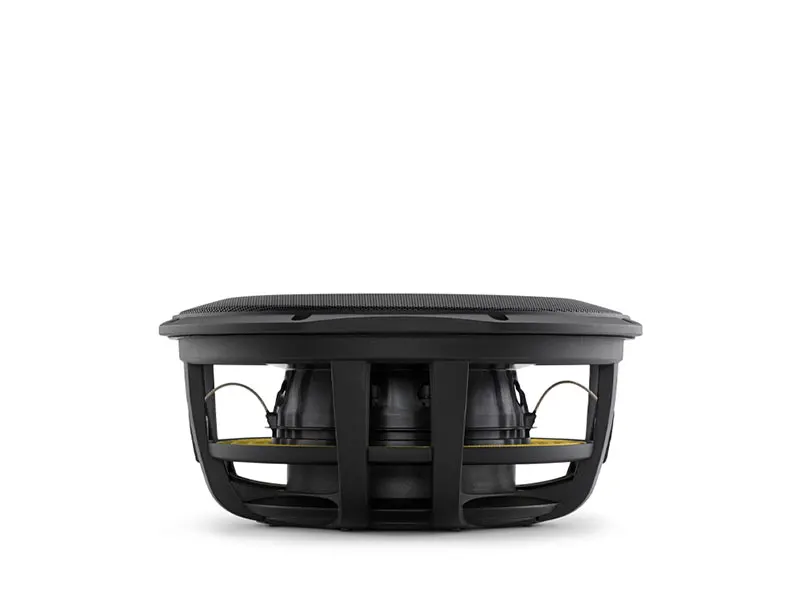

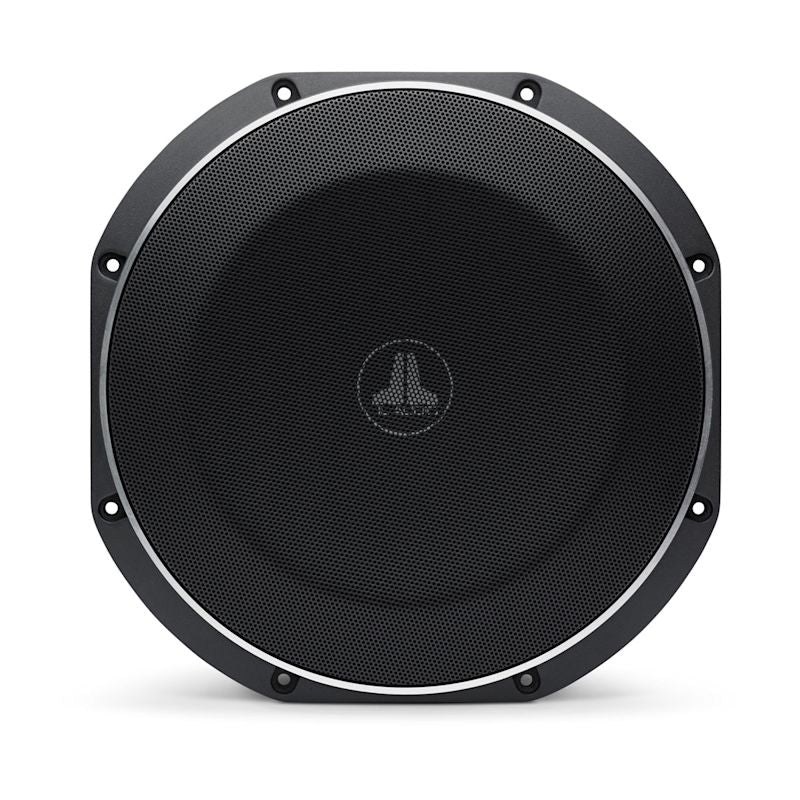

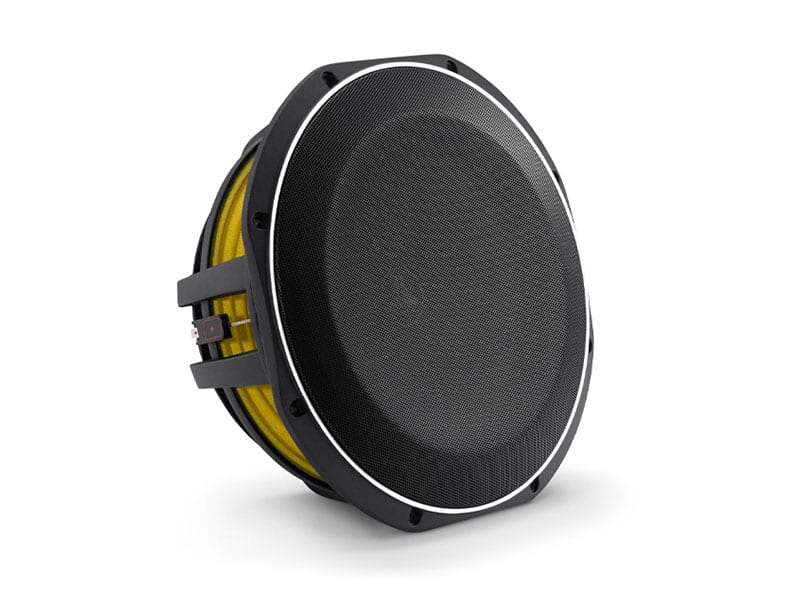

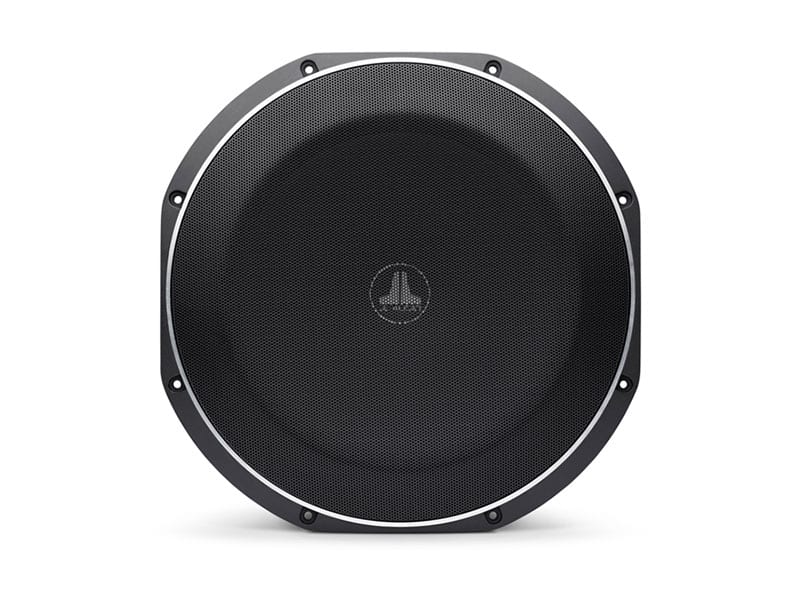

With the TW1 subwoofers’ low-profile suspension design, most of the forward excursion of the driver occurs within the frame’s dimensions — requiring only 0.87 inches of frontal clearance, even with the supplied grille installed. This allows for more efficient use of space and increased enclosure volume within a given overall depth.
ENGINEERED FOR BIG SOUND FROM A SMALL ENCLOSURE
In keeping with their “tight spaces” mission, the TW1 subwoofers deliver a powerful combination of shallow mounting depth and outstanding excursion capability to generate smooth and powerful bass from a remarkably compact enclosure.
POLYPROPYLENE CONE TECHNOLOGY
Known for their durability and moisture-resistance in harsh environments, the TW1 series’ injection-molded, mica-filled polypropylene cone design offers impressive frequency response and deep, powerful bass reproduction with minimal distortion.
DYNAMIC MOTOR ANALYSIS (DMA) OPTIMIZED DESIGN
Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output. The result is tight, clean, articulate bass performance at all power levels.

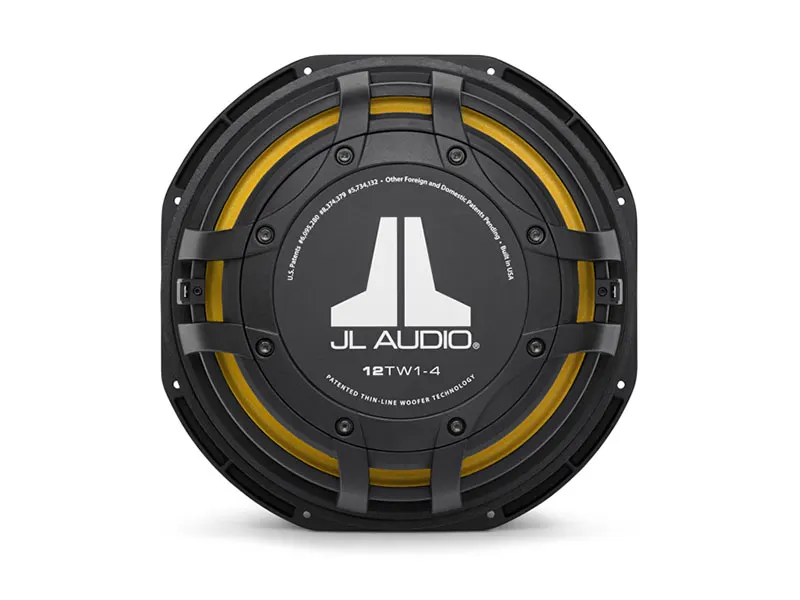

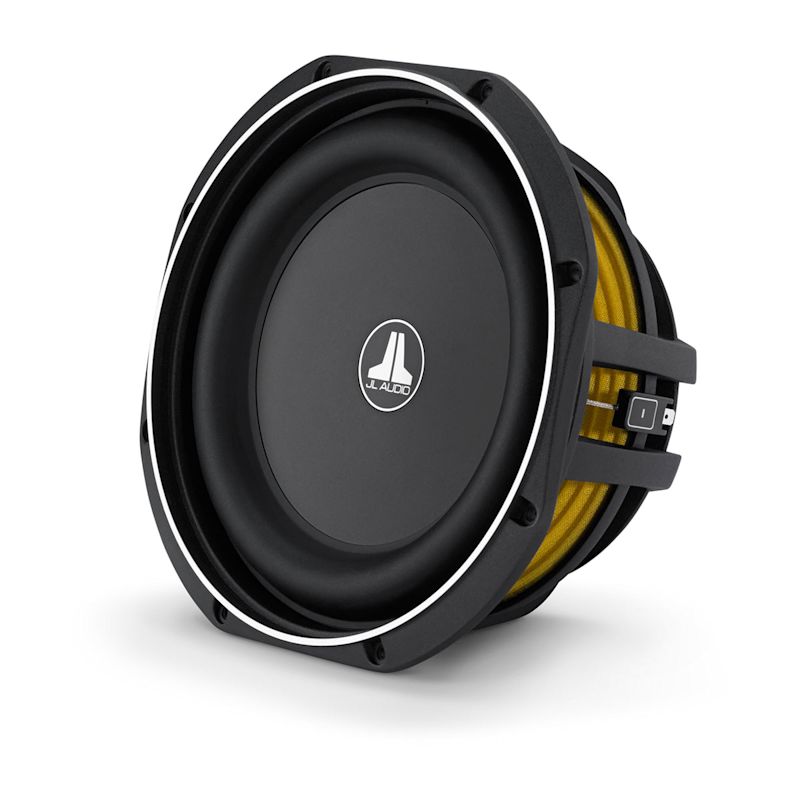

SPACE-SAVING FRAME DESIGN
Benefiting from years of JL Audio woofer design experience, the robust TW1 series speakers feature purpose-engineered cast-alloy frames with flat edges for tight grouping when mounting two or more speakers side-by-side.
POWERFULLY ADAPTABLE
On a wide range of vehicle applications, with sealed or ported enclosures, the TW1 subwoofers deliver superb sound quality and power handling. Both the 10- and 12-inch versions support pairing with amplifiers in the 75- to 300-watt range.
AUDIO TECHNOLOGIES

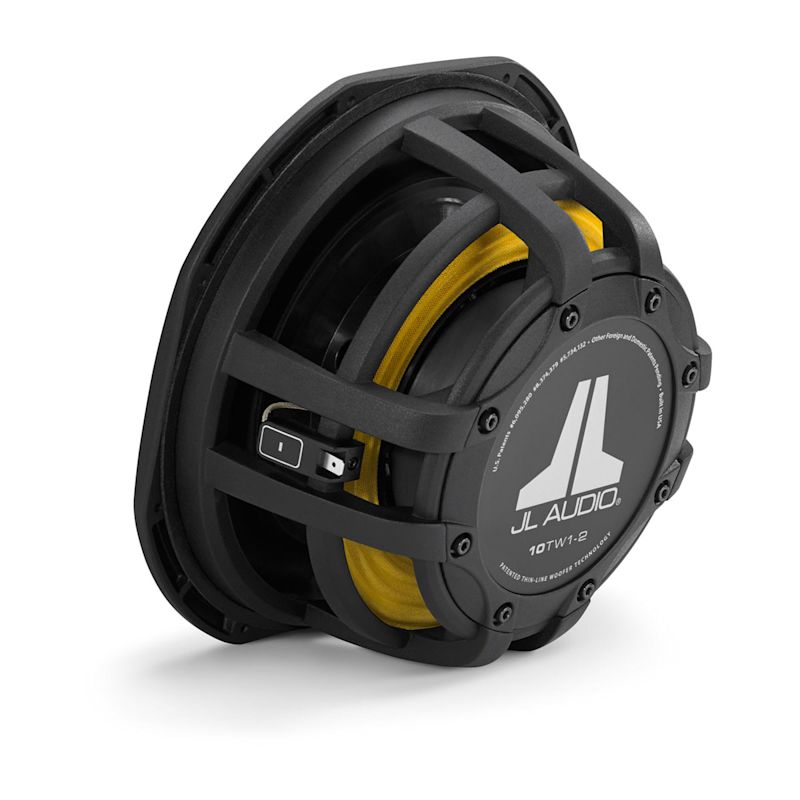

CONCENTRIC TUBE SUSPENSION TECHNOLOGY
The TW1 series features a patented concentric tube structure built into the injection-molded speaker cone body. This structure supports the voice coil and a full annular spider while permitting the placement of a large motor structure farther forward in the speaker than with conventional designs.
ENGINEERED LEAD-WIRE SYSTEM
Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.
General
12": 16.5 lbs (7.5 kg)
10"(4 Ω): 82.2 dB
12"(2 Ω): 85.07 dB
12"(4 Ω): 85.15 dB
Connections
Mounting Dimensions
12": 12.375"(314 mm)
12": 4.62"(117 mm)
12": 11.0625"(281 mm)
12": 11.7"(297 mm)
12": 5.71"(145 mm)
12": 0.072 cu ft (2.04 L)
Parameters
10"(4 Ω): 38.09 Hz
12"(2 Ω): 35.06 Hz
12"(4 Ω): 32.35 Hz
10"(4 Ω): 0.639
12"(2 Ω): 0.61
12"(4 Ω): 0.555
10"(4 Ω): 10.07
12"(2 Ω): 10.662
12"(4 Ω): 11.066
10"(4 Ω): 0.601
12"(2 Ω): 0.577
12"(4 Ω): 0.529
10"(4 Ω): 0.429 cu ft (12.15 L)
12"(2 Ω): 1.008 cu ft (28.54 L)
12"(4 Ω): 1.189 cu ft (33.67 L)
12": 67.608 in2 (0.0436 m2)
10"(4 Ω): 3.516 Ω
12"(2 Ω): 2.430 Ω
12"(4 Ω): 3.514 Ω
Sealed Enclosure Specifications
12": 0.65 cu ft (18.41 L)
12": 26.50"(673 mm)
12": 5.50"(140 mm)
10"(4 Ω): 47.24 Hz
12"(2 Ω): 45.83 Hz
12"(4 Ω): 45.44 Hz
10"(4 Ω): 56.83 Hz
12"(2 Ω): 55.99 Hz
12"(4 Ω): 54.41 Hz
10"(4 Ω): 0.897
12"(2 Ω): 0.92
12"(4 Ω): 0.89
Ported Enclosure Specifications
12": 1.125 cu ft (31.86 L)
12": 31.75"(806 mm)
12": 7"(178 mm)
12": 5.50"(140 mm)
12": 2.25"(57 mm)
12": 22.625"(575 mm)
12": 20.75"(527 mm)
12": 34.0 Hz
10"(4 Ω): 0.897
12"(2 Ω): 0.92
12"(4 Ω): 0.89
Additional
The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance.
All specifications are subject to change without notice.
