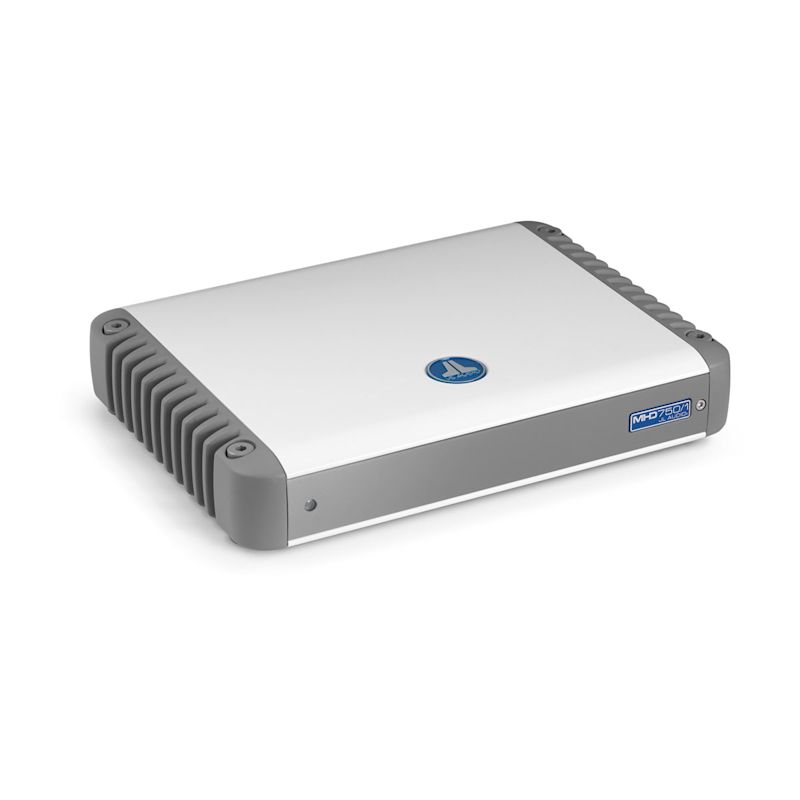

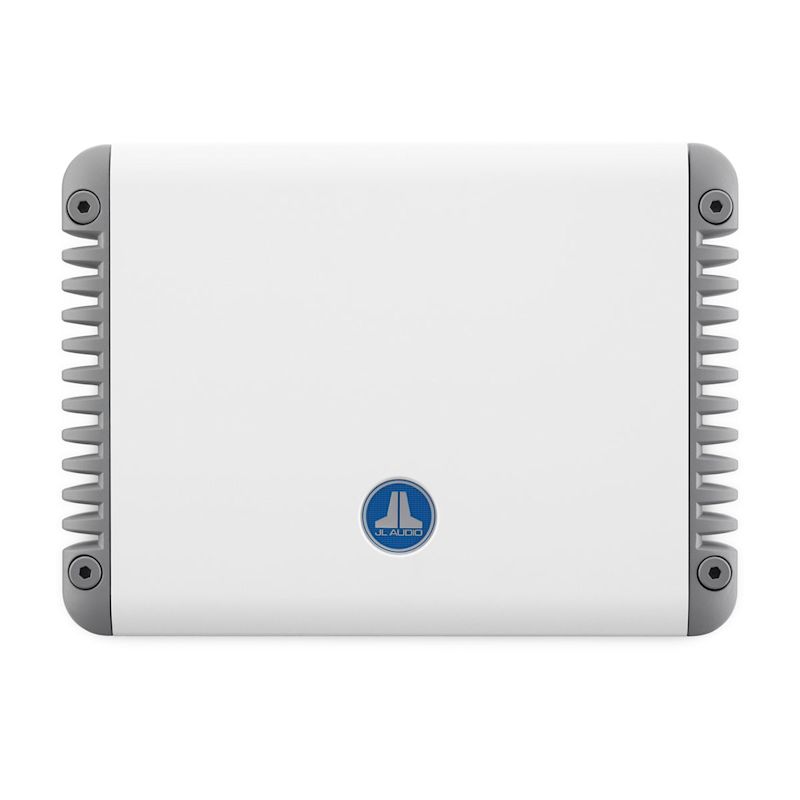

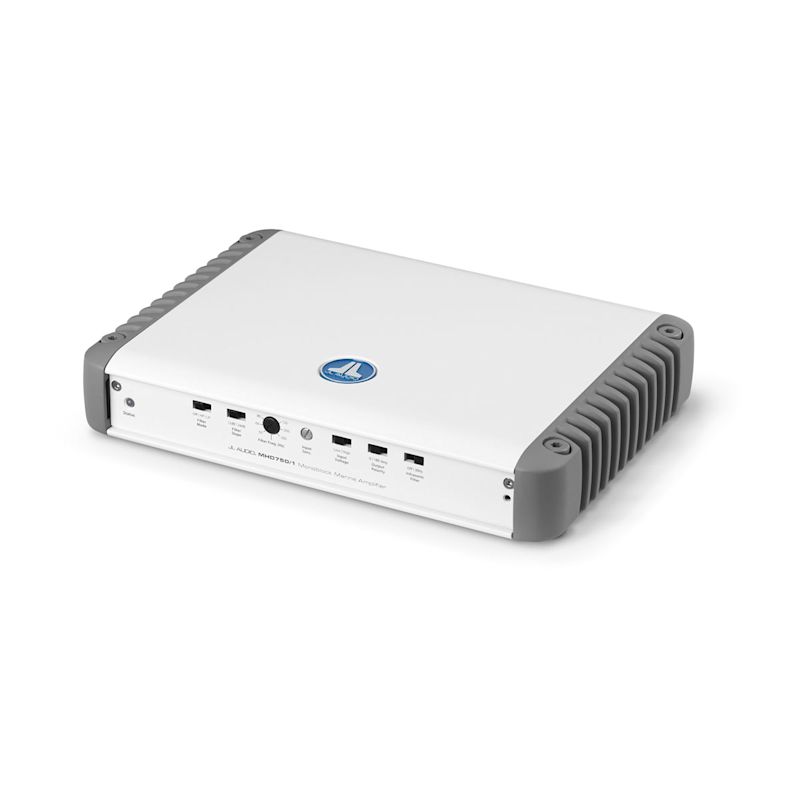

JL Audio? MHD Marine Amplifier

$499.99

ChannelsQuestion Mark Icon 1 4 5

24 VQuestion Mark Icon Yes No

Overview

ULTRACOMPACT AND ULTRAPOWERFUL

Combining our Single Cycle Control^?and R.I.P.S.^?power supply technologies, MHD amplifiers deliver world-class, full-range fidelity and high-power output from an incredibly small package.

HIGH-FIDELITY CLASS-D DESIGN DELIVERS SUPERB SONICS

INTELLIGENTLY OPTIMIZED FOR ALL THE POWER — ALL THE TIME

FULL SUITE OF STUDIO-GRADE SIGNAL PROCESSING ON BOARD

UNIQUE DESIGN ADJUSTS OPERATION TO AVOID THERMAL EVENTS

EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

2-YEAR WARRANTY

WHAT YOU'LL LOVE

SINGLE CYCLE CONTROL

Groundbreaking technology applies output correction more than 400,000 times per second to deliver exceptional audio quality with reduced current draw and heat.

R.I.P.S. TECHNOLOGY

Regulated, Intelligent Power Supply is a tightly controlled design that maintains full power output from 1.5 to 4 ohms per channel and at any supply voltage from 11 to 14.5 volts.

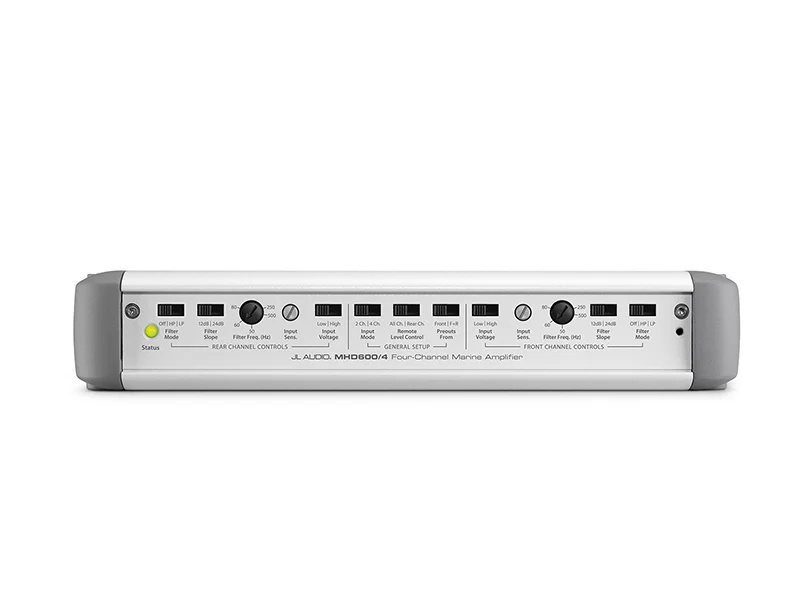

STUDIO-GRADE SIGNAL PROCESSING

Selectable 12 dB/octave (Butterworth) or steep 24 dB/octave (Linkwitz-Riley) filters with calibrated potentiometer to best integrate with subwoofers and component systems.

DIFFERENTIAL-BALANCED INPUTS

A versatile design accepts speaker level signals without a line-output converter; it also delivers outstanding noise rejection while preventing alternator whine and other noises.

ADVANCED ROLLBACK PROTECTION

Innovative circuit design ensures that the amplifier will never shut down as a result of thermal overload and keeps the music playing, even under the most demanding conditions.

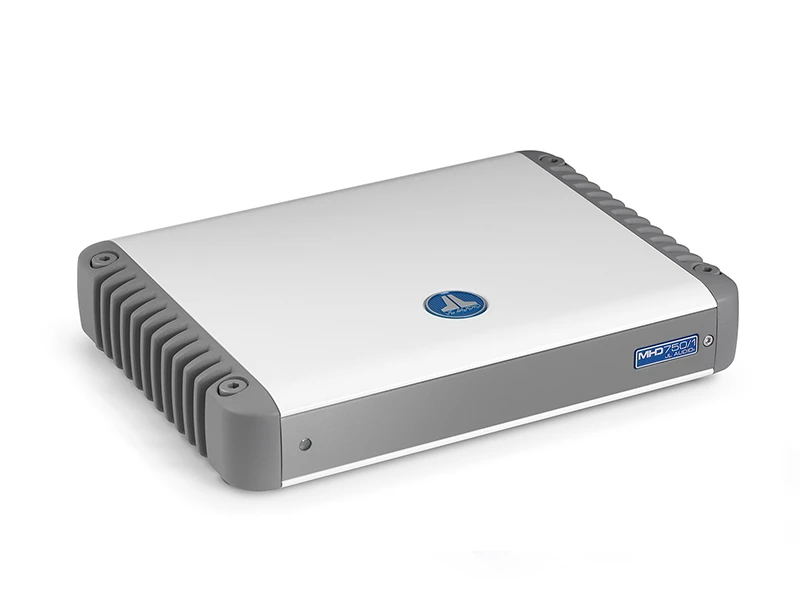

BUILT FOR THE ELEMENTS

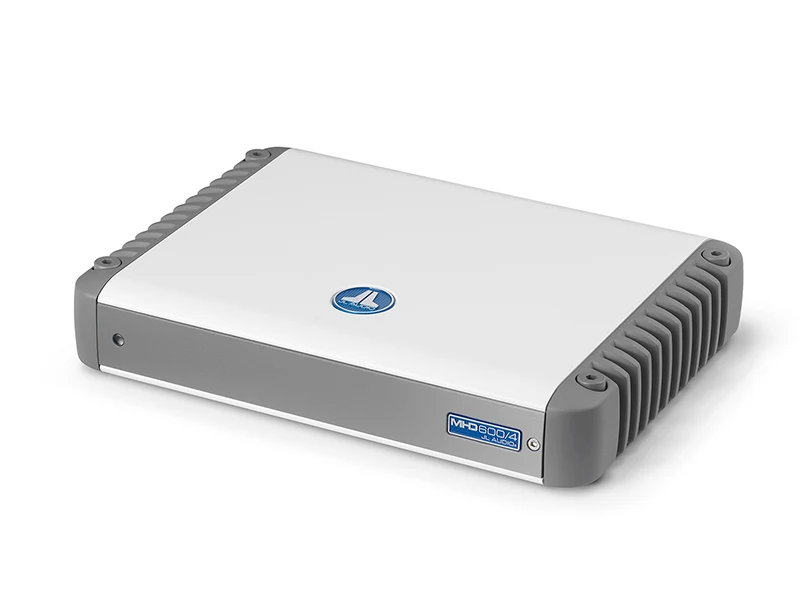

An all-aluminum, powder-coated housing with marine-grade hardware inhibits corrosion, and a watertight security cover protects all controls from the harshest of seasons.

FUNCTIONAL HIGH-FIDELITY

POWERFULLY NEAT

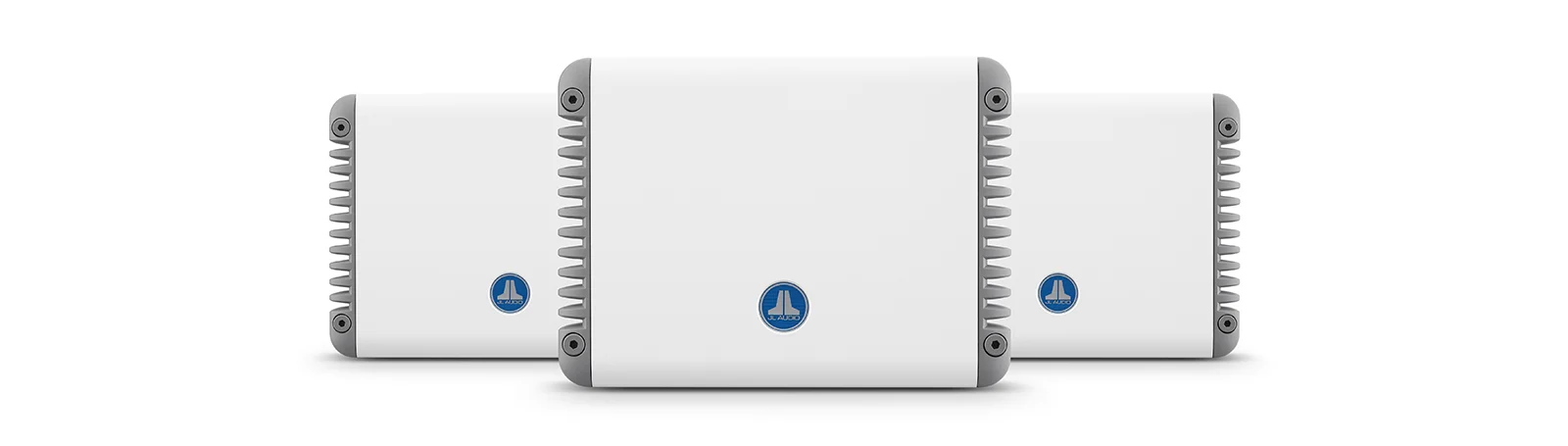

All MHD models share the same compact dimensions, making them far easier to place.

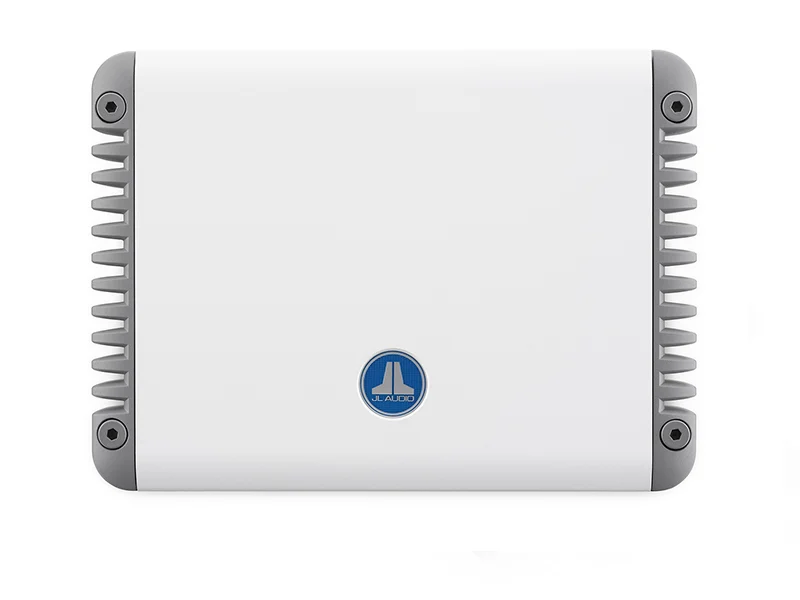

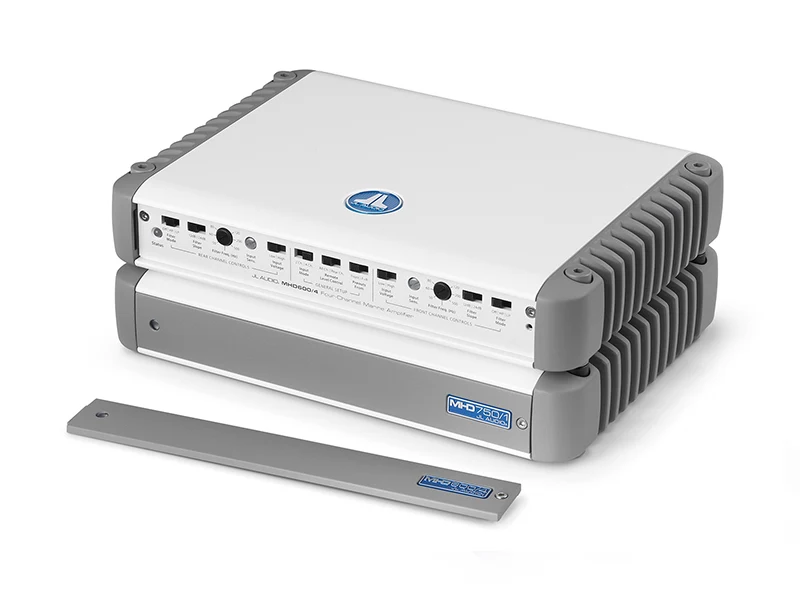

REALSINK^?CHASSIS

The heat sink design requires no fans and permits stacking without losing cooling ability.

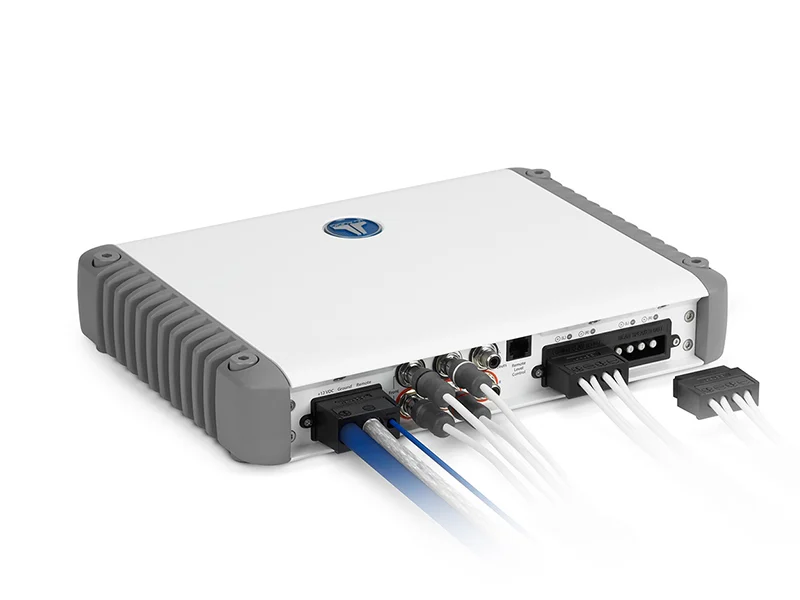

DESIGNED TO FIT

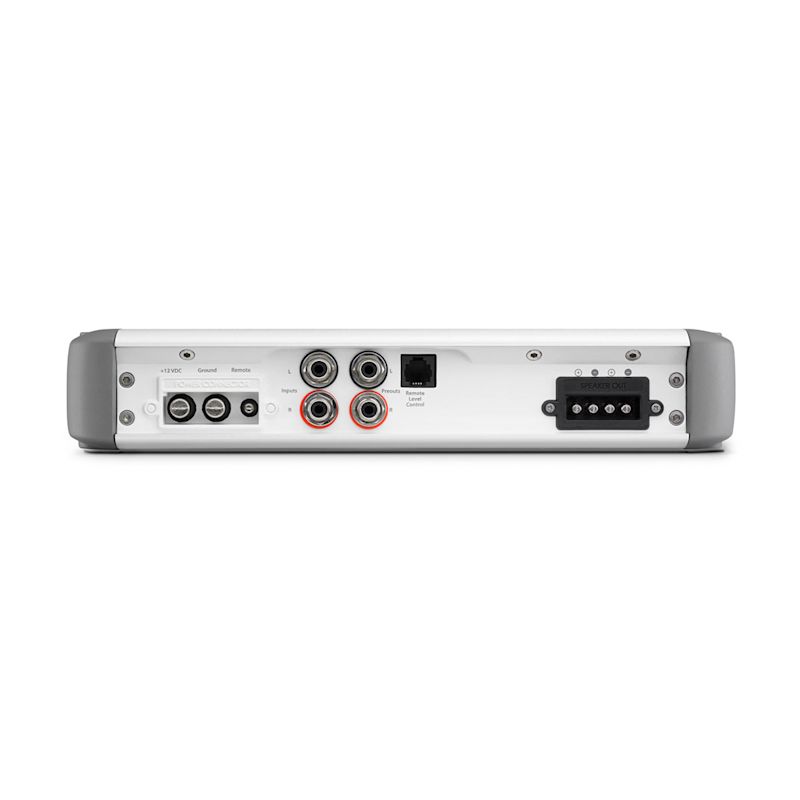

Removable power and speaker plugs aid installations in tight spaces.

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Specs

General

Channels Monoblock/4/5 Physical dimensions (Height) 1.93"(49 mm) Physical dimensions (Width) 10.74"(273 mm) Physical dimensions (Depth) 7.85"(199 mm) Weight

Monoblock: 6.6 lbs (2.99 kg)
5-Channel: 6.85 lbs (3.11 kg)

Warranty 3 years Operating voltage 11-14.5 VDC (12 V Models)
22-29 VDC (24 V Models)

Audio

Amplifier class Class D Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)

Monoblock: 750 W x 1
4-Channel: 150 W x 4/300 W x 2 (Bridged)
5-Channel: Main: 100 W x 4/Sub: 500 x 1

Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)

Monoblock: 750 W x 1
4-Channel: 150 W x 4/300 W x 2 (Bridged)
5-Channel: Main: 75 W x 4/Sub: 500 x 1

Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)

Monoblock: 750 W x 1
4-Channel: 150 W x 4/300 W x 2 (Bridged)
5-Channel: Main: 100 W x 4/Sub: 500 x 1

Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)

Monoblock: 750 W x 1
4-Channel: 150 W x 4/300 W x 2 (Bridged)
5-Channel: Main: 75 W x 4/Sub: 500 x 1

Rated continuous (RMS) power (28.8 V input @ 4 Ohm < 1% THD)

4-Channel (24 V): 150 W x 4/300 W x 2 (Bridged)
5-Channel (24 V): Main: 100 W x 4/Sub: 500 x 1

Rated continuous (RMS) power (28.8 V input @ 2 Ohm < 1% THD)

4-Channel (24 V): 150 W x 4/300 W x 2 (Bridged)
5-Channel (24 V): Main: 75 W x 4/Sub: 500 x 1

Rated continuous (RMS) power (25 V input @ 4 Ohm < 1% THD)

4-Channel (24 V): 150 W x 4/300 W x 2 (Bridged)
5-Channel (24 V): Main: 100 W x 4/Sub: 500 x 1

Rated continuous (RMS) power (25 V input @ 2 Ohm < 1% THD)

4-Channel (24 V): 150 W x 4/300 W x 2 (Bridged)
5-Channel (24 V): Main: 75 W x 4/Sub: 500 x 1

Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock: > 110 dB below rated power
4-Channel: > 110 dB
5-Channel: > 108.5 dB below rated power Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock: > 88 dB
4/5-Channel: > 88.2 dB Damping factor @ 4 Ω Monoblock: > 500/50 Hz
4-Channel: > 300/50 Hz
5-Channel: > 400/50 Hz Damping factor @ 2 Ω Monoblock: > 250/50 Hz
4-Channel: > 150/50 Hz
5-Channel: > 200/50 Hz THD+N @ Rated Power Monoblock/4-Channel: < 0.03% @ 4 Ω THD+N @ Rated Power: Main Channels 5-Channel: < 0.03% @ 4 Ω THD+N @ Rated Power: Subwoofer Channel 5-Channel: < 0.05% @ 4 Ω Frequency response (+0, -1dB) Monoblock: 6 Hz-8 kHz
4-Channel: 6 Hz-30 kHz Frequency response (+0, -1dB): Main Channels 5-Channel: 12 Hz-28 kHz Frequency response (+0, -1dB): Subwoofer Channel 5-Channel: 12 Hz-10 kHz Input voltage range @ RCA inputs Switchable from 200 mV-2 V RMS (low) to 800 mV-8 V RMS (high) Fuse rating Monoblock/5-Channel: 60 A
4-Channel: 50 A
4-Channel (24 V): 25 A
5-Channel (24 V) 30 A Recommended fuse type(s) AFS, AGU or MaxiFuse? Min. copper power/Ground wire gauge 4 AWG wire

Signal Processing

Filter mode(s): Channels 1 & 2 4-Channel: Off, Low-Pass or High-Pass
5-Channel: Off or High-Pass only Filter Slope(s): Channels 1 & 2 4/5-Channel: 12/24 dB/octave Filter frequency range: Channels 1 & 2 4/5-Channel: 50 Hz-500 Hz Filter mode(s): Channels 3 & 4 4-Channel: Off, Low-Pass or High-Pass
5-Channel: Off or High-Pass only Filter Slope(s): Channels 3 & 4 4/5-Channel: 12/24 dB/octave Filter frequency range: Channels 3 & 4 4/5-Channel: 50 Hz-500 Hz Filter mode(s): Subwoofer Channel Monoblock: Off, Low-Pass or High-Pass
5-Channel: Off or Low-Pass only Filter slope(s): Subwoofer Channel Monoblock: 12/24 dB/octave Filter frequency range: Subwoofer Channel Monoblock: 50 Hz-500 Hz Detented, calibrated filter frequent potentiometers Infrasonic filter: Subwoofer Channel Monoblock/5-Channel: 30 Hz, defeatable Remote level control Optional (HD-RLC) Remote level modes 4-Channel: 2 or All Channels
5-Channel: Sub Channel only Channel input mode switch 4-Channel: yes (2/4 Channels)
5-Channel: yes (2/4/6 Channels) Output polarity switch Monoblock: yes Pass-through preamp output Monoblock/4-Channel: Buffered
5-Channel: Buffered Source channel selection for PreOuts 4-Channel: yes

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
