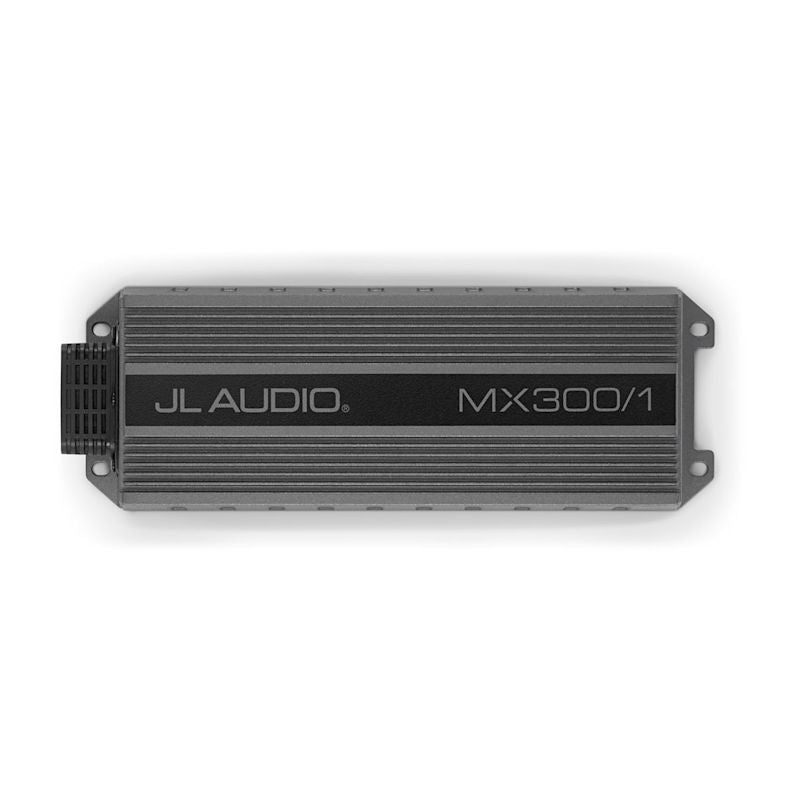

JL Audio? MX Marine and Powersports Amplifiers

$329.99

ChannelsQuestion Mark Icon 1 3 4

Total PowerQuestion Mark Icon 280 W 300 W 500 W 600 W

Overview

PLAY ANYWHERE

With efficient NexD^?technology and a water-resistant chassis, MX amplifiers produce loads of clean power and are ideal for applications where moisture cannot be completely avoided.

DESIGNED FOR LIMITED SPACE APPLICATIONS

SHOCK-RESISTANT, WATER-RESISTANT AND BUILT TOUGH

EFFICIENT DESIGN FOR HIGH OUTPUT USES LESS ENERGY

COMPLETE SIGNAL PROCESSING SECTIONS ON BOARD

EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE

2-YEAR WARRANTY

WHAT YOU'LL LOVE

POWER TO GO ANYWHERE

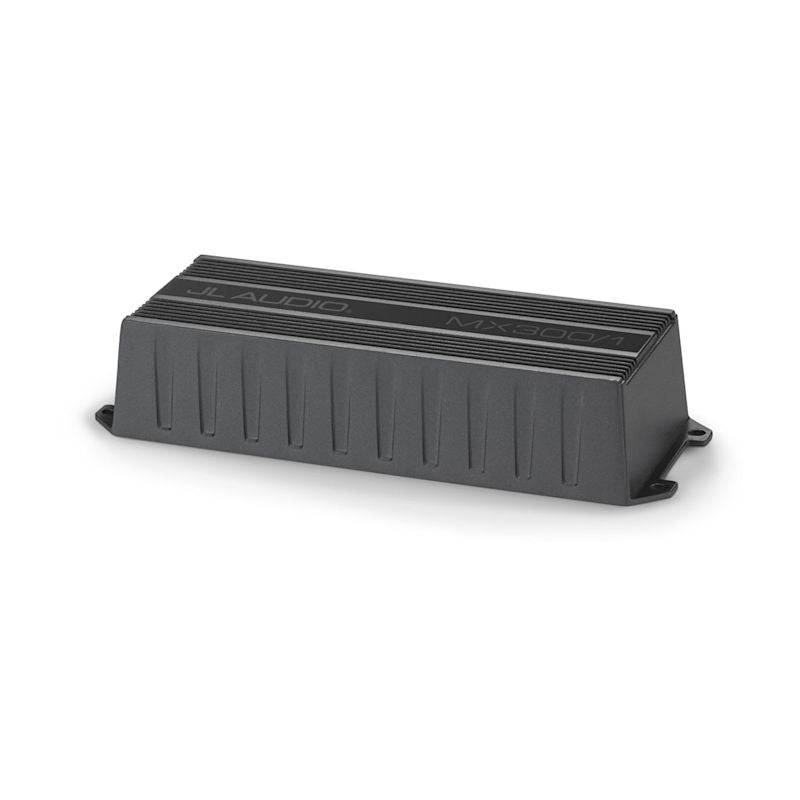

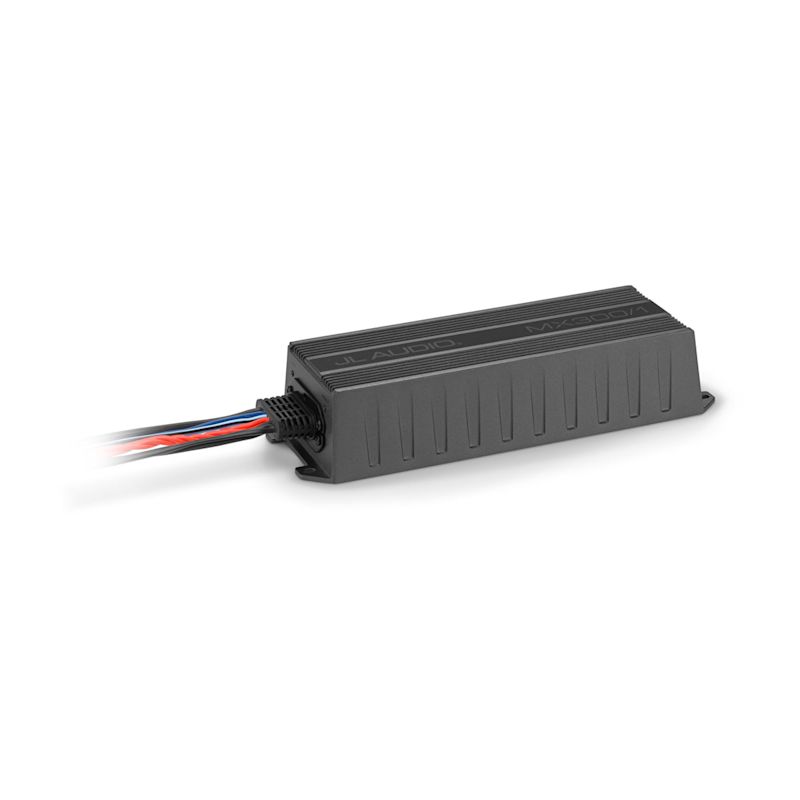

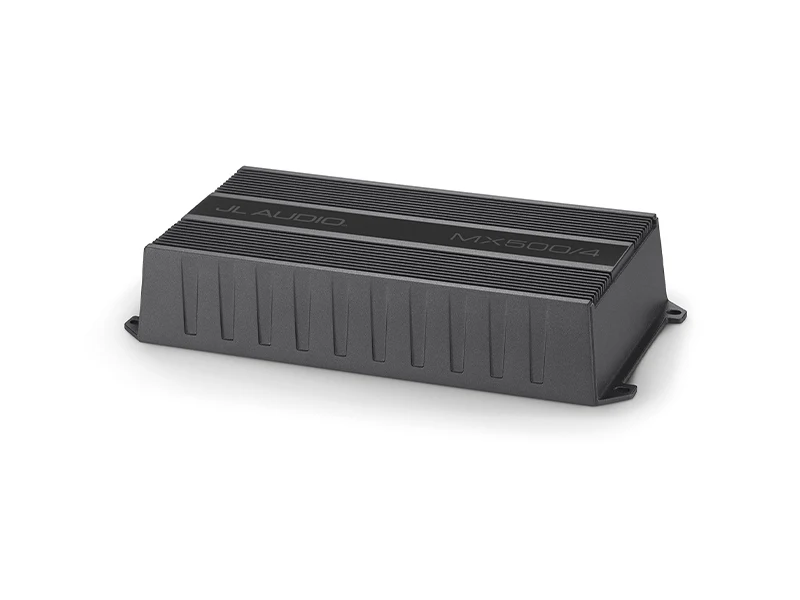

Housed in a tiny cast-aluminum chassis, MX amps are rugged, water-resistant (IPX7-rated) and ready to go where conventional amplifiers wouldn’t dare.

NexD ADVANTAGE

The highly efficient Class-D design reduces current draw and heat while generating loads of high-fidelity sound without straining small charging systems.

COMPLETE SIGNAL PROCESSING

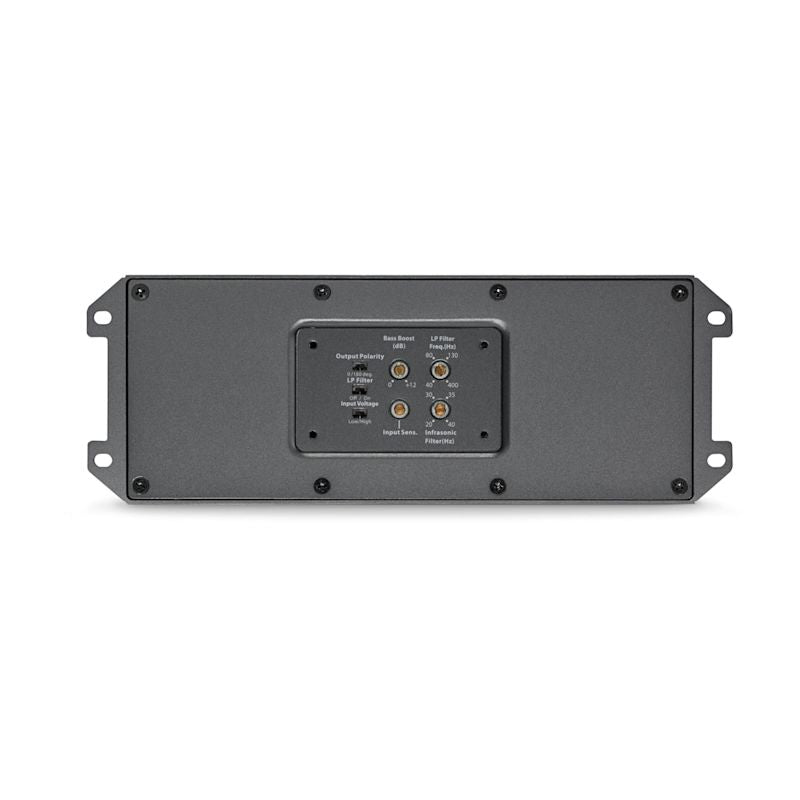

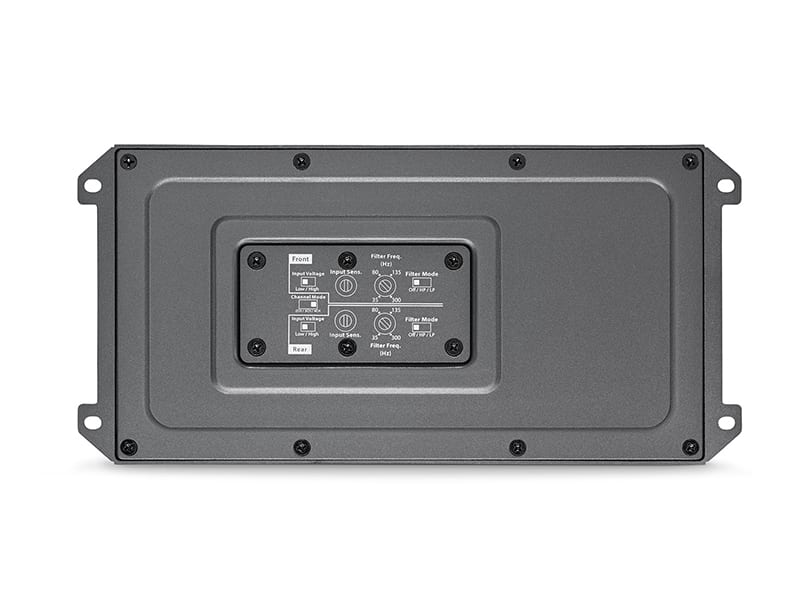

For easy setup and system flexibility, a complete set of onboard filters and signal processing features is concealed behind every MX amplifier’s water-resistant control cover.

DIFFERENTIAL-BALANCED INPUTS

A versatile design accepts speaker level signals without a line-output converter — and delivers outstanding noise rejection while preventing alternator whine and other noises.

BUILT FOR THE ELEMENTS

The all-aluminum, powder-coated housing with marine-grade hardware inhibits corrosion, and a water-resistant security cover protects all controls from the harshest of seasons.

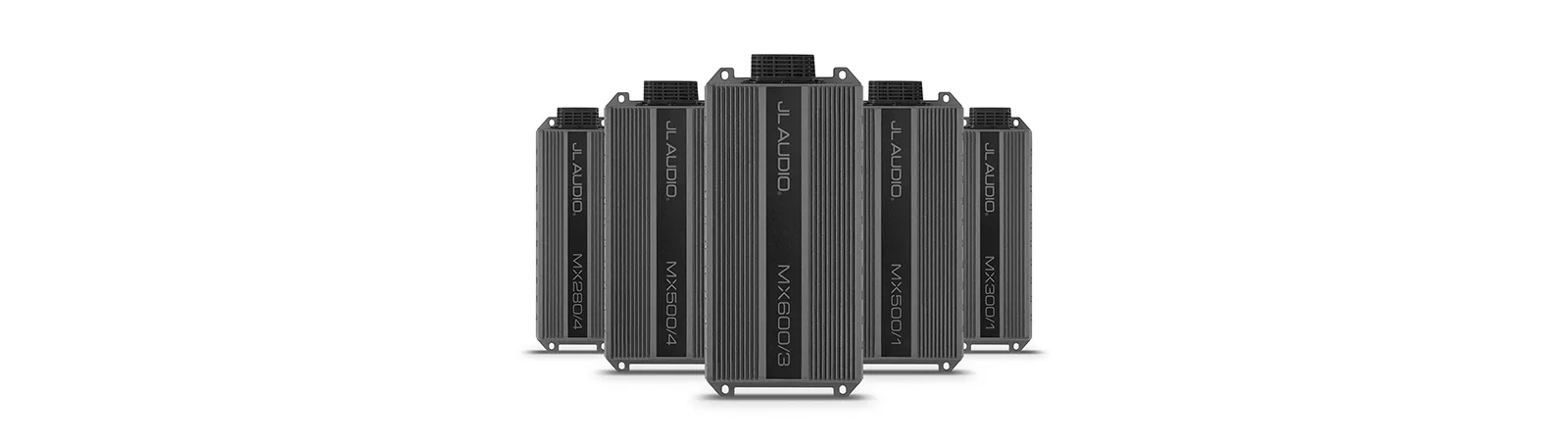

CHOOSE YOUR MODEL

FULL-RANGE STEREO

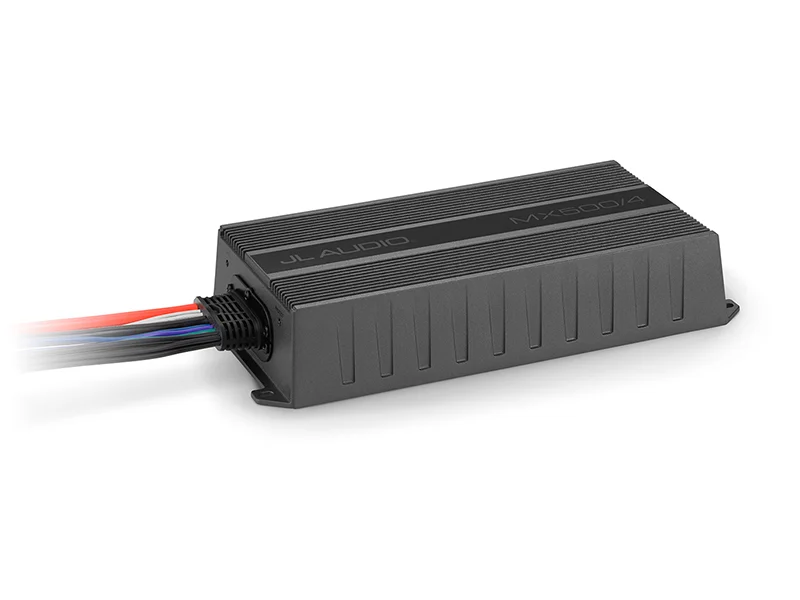

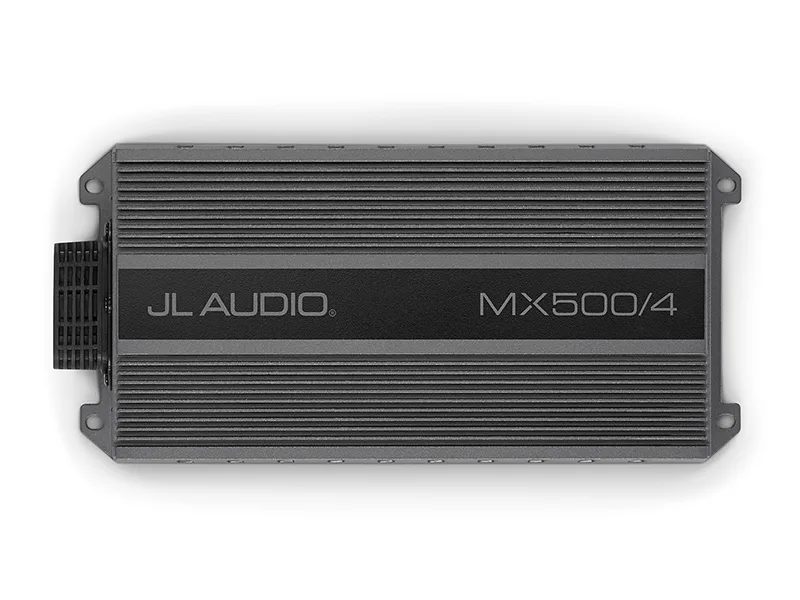

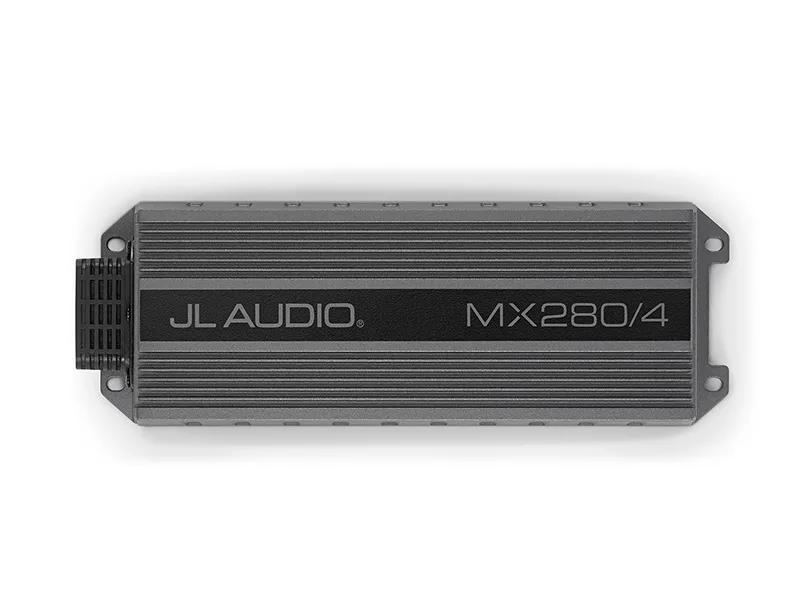

These amplifiers offer two 4-channel models with 280 and 500 watts.

SYSTEM AMPLIFIER

It’s a tiny 600-watt powerhouse with 2 full-range outputs plus a subwoofer output.

MONOBLOCK

Two models are available with 300 and 500 watts.

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Specs

General

Channels Monoblock/3/4 Physical dimensions (Height) 1.77"(45 mm) Physical dimensions (Width) Monoblock (300 W)/4-Channel (280 W): 8.66"(220 mm)
Monoblock (500 W)/3/4-Channel (500 W): 9.33"(237 mm) Physical dimensions (Depth) Monoblock (300 W)/4-Channel (280 W): 3.09"(78.5 mm)
Monoblock (500 W )/3/4-Channel (500 W): 4.50"(115 mm) Weight

3.18 lbs (1.44 kg)

Warranty 3 years Operating voltage 11-15 VDC

Audio

Amplifier class Class D Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) Monoblock (300 W): 160 W x 1
Monoblock (500 W): 300 W x 1
3-Channel: Main: 75 W x 2/Sub: 250 W x 1
4-Channel (280 W): 50 W x 4/140 W x 2 (Bridged)
4-Channel (500 W): 70 W x 4/250 W x 2 (Bridged) Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) Monoblock (300 W): 300 W x 1
Monoblock (500 W): 500 W x 1
3-Channel: Main: 100 W x 2/Sub: 400 W x 1
4-Channel (280 W): 70 W x 4
4-Channel (500 W): 125 W x 4 Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) Monoblock (300 W): 160 W x 1
Monoblock (500 W): 250 W x 1
3-Channel: Main: 50 W x 2/Sub: 200 W x 1
4-Channel (280 W): 36 W x 4/100 W x 2 (Bridged)
4-Channel (500 W): 55 W x 4/180 W x 2 (Bridged) Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) Monoblock (300 W): 250 W x 1
Monoblock (500 W): 400 W x 1
3-Channel: Main: 80 W x 2/Sub: 300 W x 1
4-Channel (280 W): 52 W x 4
4-Channel (500 W): 90 W x 4 Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (300 W): > 85 dB
Monoblock (500 W): > 97 dB
4-Channel (280 W): > 89.5 dB
4-Channel (500 W): > 88 dB Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 3-Channel: > 88 dB Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 3-Channel: > 88 dB Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (300 W): > 64 dB
Monoblock (500 W): > 70 dB
4-Channel (280 W): > 68 dB
4-Channel (500 W): > 70.5 dB Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 3-Channel: > 68 dB Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 3-Channel: > 68 dB Damping factor @ 4 Ω Monoblock (300 W): > 120/50 Hz
Monoblock (500 W): > 115/50 Hz
4-Channel (280 W): > 60/50 Hz
4-Channel (500 W): > 92/50 Hz
Damping factor @ 2 Ω Monoblock (300 W): > 75/50 Hz
Monoblock (500 W): > 54/50 Hz
4-Channel (280 W): > 30/50 Hz
4-Channel (500 W): > 43/50 Hz THD+N @ Rated Power Monoblock (300 W/500 W)/4-Channel (280 W): <1% @ 2 Ω per Channel THD+N @ Rated Power: Main Channels <1% @ 2 Ω per Channel THD+N @ Rated Power: Subwoofer Channel <1% @ 2 Ω per Channel Frequency response (+0, -1dB) Monoblock (300 W)/3/4-Channel (280 W/500 W): 20 Hz-20 kHz
Monoblock (500 W): 20 Hz-12 kHz Input voltage range @ RCA inputs Monoblock (300 W): Switchable from 250 mV-4 V RMS (Low) to 580 mV-14 V RMS (High)
Monoblock (500 W)/4-Channel (280 W/500 W): Switchable from 250 mV-4 V RMS (Low) to 750 mV-15 V RMS (High) Fuse rating Monoblock (300 W): 30 A
Monoblock (500 W)/4-Channel (500 W): 50 A
3-Channel: 60 A
4-Channel (280 W): 35 A Recommended fuse type(s) AFS, AGU or MaxiFuse? Min. copper power/Ground wire gauge Monoblock (300 W)/4-Channel (280 W): 8 AWG wire
Monoblock (500 W)/3/4-Channel (500 W): 4 AWG wire

Signal Processing

Filter mode(s): Channels 1 & 2 Monoblock (300 W/500 W): Off or Low-Pass only
3/4-Channel (280 W/500W): Off, Low-Pass or High-Pass Filter Slope(s): Channels 1 & 2 Monoblock (300 W)/4-Channel (280 W/500 W): 12 dB/octave
Monoblock (500 W): 24 dB/octave Filter frequency range: Channels 1 & 2 Monoblock (300 W): 40 Hz-400 Hz
4-Channel (280 W/500 W): 35 Hz-300 Hz Filter mode(s): Channels 3 & 4 4-Channel (280 W/500 W): Off, Low-Pass or High-Pass Filter Slope(s): Channels 3 & 4 4-Channel (280 W/500 W): 12 dB/octave Filter frequency range: Channels 3 & 4 4-Channel (280 W/500 W): 35 Hz-300 Hz Filter mode(s): Subwoofer Channel 3-Channel: Off or Low-Pass only Filter slope(s): Subwoofer Channel 3-Channel: 12 dB/octave Filter frequency range: Subwoofer Channel 3-Channel: 40 Hz-400 Hz Bass boost EQ (0 to +12 dB @ 45 Hz) Monoblock (300 W/500 W): 0 to +12 dB @ 43 Hz Detented, calibrated filter frequent potentiometers Remote level control Monoblock (300 W/500 W)/3-Channel: Optional (RBC-1) Channel input mode switch 3-Channel: yes (2/4 Channels)
4-Channel (280 W/500 W): yes (2/3/4 Channels) Output polarity switch Monoblock (300 W/500 W)/3-Channel: yes

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
